highly sensitive and selective superhetrodyne receiver

RX FM 134 - 141 MHz

...A low cost, high performance, microcontroller driven 10 channel receiver. Ready for NOAA 18. Complete  with all additional components required for full computer control. Supplied with the WXTOIMG Software...

( SATELIT NOAA, METEOR, RESURS, METEOSAT ... )

[ Česká verze ]   [ English version   [ Index ]




Ing. Miroslav GOLA  OK2UGS , QTH FRÝDEK - MÍSTEK   CZECH REPUBLIC   LOC: JN99EQ

 emgo@vuhz.cz     Aktualizace 07. 07. 2007


The following text is meant for advanced hams and it describes assembly of FM receiver for interesting waveband of 134 - 141 (137 - 141) MHz, which is used for transmission of images from space (views of the Earth from meteorological satellites located at the distance of 850 km or 36000 km).




Receiver technical data (model 2007)

Frequency Range  134 - 141 MHz (infinitely adjustable, step by step 10 kHz)
 Frequency Synthesizer Step:  10,0 kHz or alternately 12,5 kHz
 Input Sensitivity:  0,25uV (rms-type) for 12dB SINAD
 Intermediate Frequency:  10,7 MHz and 455 kHz
 Tone decoder/PLL SE567:  2400 Hz
 Pass band of the 2-st.IF filter:  30 kHz/ - 3 dB or alternately 15 kHz
 Power:  DC 9 V (max.12 V)
 Current output:  70 - 90 mA, according to the loudness level setting
 Power Connector:  3 mm (+ pole is inside of the jack pin, - pole is on its surface!!!)
 WXtoIMG Scanning:  Yes / 10 -channel, controlled by the uP [ RS-232 or USB ]
 Automatic Scanning:  Yes - 2400 Hz stop point - Squelch function controlled by the uP
 S-meter  ( analog - digital ):  Yes
 Noise Gate ( SQUELCH ):  Yes
 Antenna Connector:  "1x BNC" type
 Display:  LCD 1 x 16 alpha - numerical  symbols
 Connection for Loud speaker:  (or Headphones) external 8-25 Ohms, CINCH connectors
 Connection for PC:  PIN connectors or cable from the computer sound card
 Receiver Size:  225x200x70 mm



PHOTOGALLERY

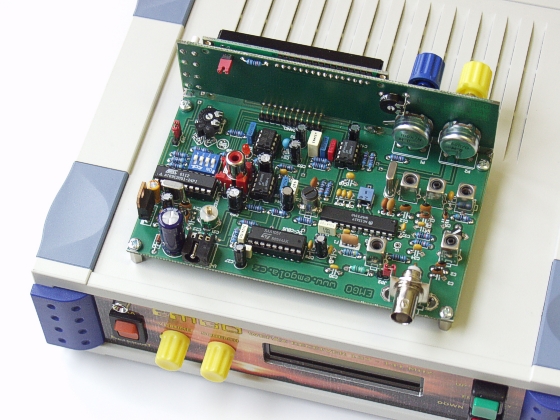

RX134141MHz ... new model 2007 (unprecedented software RS-232/WXtoIMG ... operating by three buttons)


Photogallery RX134141MHz ... old model 2005 (operating by two buttons and RS-232)
























Complete schematic you will find here

Components layout, top side (bot PCB) here





Text here [will issue in periodical VHF Communications 3Q/2002 ]


 New publication...





You can order the kit with very detailed assembly instructions and with rich photo documentation of details and complete unit on CD-ROM at our address:

  Ing. Miroslav Gola - EMGO, Areal VUHZ, a.s., Dobra 240, CZ-73951 Dobrá, Czech Republic

emgo@vuhz.cz   or   emgo@iol.cz



You can view current topical information on internet site of the company EMGO... http://www.emgola.cz/
